Cheap 3d galvanized welded fence panel wire mesh

关键词：

图文详情

Product Description

Fence is mainly used for road, highway, highway next to the bridge on both sides of the protection zone as a fence, can also be used for airports, ports, terminals security, municipal construction of the park, lawn, zoo, pool, Residential areas of the isolation and protection, hotels, supermarkets, entertainment protection and decorative products.

Features:

1,5 years or more maintenance-free, not easy to rust, peeling, cracking, powder.

2,The construction of special tools, no welding riveting, quick installation.

3, Salt spray resistance, high corrosion resistance, strong resistance to ultraviolet light, weather resistance.

4,The unique installation system, anti-theft.

5,A good surface self-cleaning ability; rain and shower, water cleaning can be clean.

Product Specification
Color	Green, white, Black, Gray
Surface	1)Dip Coating,2)Hot galvanizing
Bolt Material	Steel
Connection between fence and post	Connect with fasterner after welded.
Foundation	1)Ground screw,2)Concrete foundation,3)Pile in type
Wire Diameter	1)4.0mm,2)4.5mm,3)5.0mm
Post	1)Round Pipe(usualφ48mm),2)Quare pipe( usual size: 40402mm)
Garnet wire	Can add carnet wire onto the fence
Standard	ISO 9001: 2000
Warranty	10 Years
Service Life	25 Years
Our Service	OEM / ODM
Size Specification
Fence height	Ground screw length(Pile in type)	Ground screw length(Ground screw foundation)	Pile in Depth(Pile in type)	Pile in Depth(Ground screw foundation)	Mesh
H800	1100	1000	300	200	50*150
H1000	1300	1200	300	200	50*150
H1200	1500	1400	300	200	50*150
H1500	1800	1700	300	200	50*150
H1800	2100	2000	300	200	50*150

Related Products

The triangle bending fence:

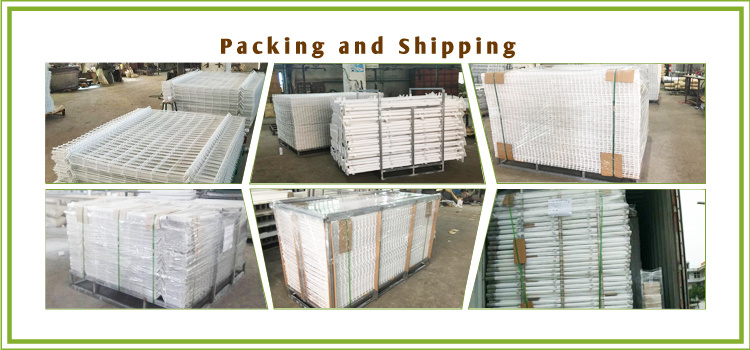

Packing and Shipping


company profile

-_03 -_04 -_05

production process

-_06

FAQ

-_07
